Change Data Capture (CDC) is one of the frequently used features in SQL Server 2008 and above, it records any (CDC enabled) table’s changes and stores in audit tables. Recently, I upgraded one of my client’s database from SQL Server 2005 database to SQL Server 2012 and one of the key reasons to upgrade is to utilize the new features in the upgraded version. Once I started enabling CDC feature in few tables of the database it gave me given below error.

Message Number: 22939

Severity : 16

Error Message: The parameter @supports_net_changes is set to 1, but the source table does not have a primary key defined and no alternate unique index has been specified.

Error Generation:
I presume that CDC has been enabled on this particular database. Let me create a sample table to demonstrate this error.

USE AdventureWorks2012
GO
--Create Sample Table
CREATE TABLE tbl_Sample
(
[ID] INT NOT NULL,
[NAME] VARCHAR(50)
)
GO

-- Enable CDC feature on this table with net changes support parameter.
USE AdventureWorks2012
GO
EXEC sys.sp_cdc_enable_table
@source_schema = N'dbo',
@source_name = N'tbl_sample',
@role_name = NULL,
@supports_net_changes = 1
GO
--OUTPUT

Error Message 22939.1

Msg 22939, Level 16, State 1, Procedure sp_cdc_enable_table_internal, Line 194
The parameter @supports_net_changes is set to 1, but the source table does not have a primary key defined and no alternate unique index has been specified.

Ooopps…… I am NOT able to enable CDC on sample table.

Resolution:
The reason behind this error is that you do not have either primary key or unique index on the sample table and you want to enable net changes support in CDC. Before proceeding with the resolution, you should check whether you can create a Primary Key or Unique Index on the table to avoid such error.
Given below is the simple script to add Primary Key OR Unique Index in the sample table.

--Create Primary Key
USE AdventureWorks2012
GO
ALTER TABLE dbo.tbl_Sample ADD PRIMARY KEY (ID)
GO

-- Create Unique Index
USE AdventureWorks2012
GO
ALTER TABLE tbl_Sample
ADD CONSTRAINT UX_Constraint UNIQUE (ID)
GO
--OUTPUT

You can execute any one of the above scripts and can create Primary Key or Unique Index in the sample table.

Once you executed the above script, you can easily enabled the CDC with supports_net_changes as shown below.

USE AdventureWorks2012
GO
EXEC sys.sp_cdc_enable_table
@source_schema = N'dbo',
@source_name = N'tbl_sample',
@role_name = NULL,
@supports_net_changes = 1
GO
--OUTPUT

Command(s) completed successfully.

Error Message 22939.2

Conclusion :
Remember, whenever you need to enable CDC with supports_net_changes, make sure that the particular table HAS either Primary Key or Unique Index in order to avoid this error.

Read Full Post »

Change Data Capture (CDC) has been discussed in detail in my earlier articles. In this article, I will discuss an error message that I came across while disabling the CDC for a table due to insufficient parameters.

error

Let me explain this error in detail :

Message Number: 22960

Severity : 16

Error Message: Change data capture instance ‘%s’ has not been enabled for the source table ‘%s.%s’. Use sys.sp_cdc_help_change_data_capture to verify the capture instance name and retry the operation.

Error Generation:

Let me DISABLE CDC feature on a particular table.

USE AdventureWorks2012
GO
EXEC sys.sp_cdc_disable_table
@source_schema = N'HumanResources',
@source_name   = N'Department',
@capture_instance = NULL
GO

Msg 22960, Level 16, State 1, Procedure sp_cdc_disable_table_internal, Line 75
Change data capture instance ‘(null)’ has not been enabled for the source table ‘HumanResources.Department’. Use sys.sp_cdc_help_change_data_capture to verify the capture instance name and retry the operation.

Ooopps…… I am unable to disable CDC on this table. How to fix it ?

Resolution:
The resolution is very simple because partially it is explained in the error message itself. Let me fix this error step by step.

Step 1 :
First of all, you need to execute sys.sp_cdc_help_change_data_capture (A system stored procedure) in order to find the capture instance name of that particular table name as shown below.

USE AdventureWorks2012
GO
sys.sp_cdc_help_change_data_capture
GO
--OUTPUT

error message 22960.1

Step 2 :
The next step is to get the capture instance name of the particular table from the above result set and pass it in the sys.sp_cdc_disable_table (A system stored procedure) to disable the CDC feature from that table as shown below.

USE AdventureWorks2012
GO
EXEC sys.sp_cdc_disable_table
@source_schema = N'HumanResources',
@source_name   = N'Department',
@capture_instance = N'HumanResources_Department'
GO

Conclusion :

Remember, whenever you need to disable CDC feature from any table, find out the capture instance name of the table and then disable it using sys.sp_cdc_disable_table in order to avoid this error.

Read Full Post »

File table is one of the best features shipped with SQL Server 2012, it is a special type of table which allows us to store files and folders in windows and we can easily access it through windows application & SQL Server without any customization. I have written multiple articles on file table. However, still doing research on this special table. Today, I came across an issue with filetable at the client side once they were doing some activity on it. The issue is when they tried to explore FileTable Directory in a FileTable, the option was disabled as shown below. However I can perform any activity on file table except to explore it.

Explore FileTable Directory.1.1

Now, I cannot explore this file table using explore the filetable directory option. It means that I cannot view the filetable’s files and folder using windows directory. So what is the problem and possible solution ?

Resolution:
I asked the client what activity they did with filetable but they had no clue. So, I started doing my research and finally resolved it by MSDN help. In fact the Filetable’s NON_TRANSACTED_ACCESS has been switched OFF by mistake as shown below.

Explore FileTable Directory.1.2

Wow, I found the problem that has disabled the explore FileTable directory as mentioned above. Now what is the solution ?
Given below is the script that can enable the NON_TRANSACTED_ACCESS that can result in enabling the explore FileTable directory.

--This script is compatible with SQL Server 212 and above.
 ALTER DATABASE SameplDB
    SET FILESTREAM ( NON_TRANSACTED_ACCESS = FULL );
GO

Once you execute the above script, try again to check if the explore FileTable Directory in the FileTable has been enabled or not. This time you will succeed as shown below.

Explore FileTable Directory.1.3

Conclusion:
Whenever, you come across such issue, you must check the NON_TRANSACTED_ACCESS of the particular database in order to fix this issue.

Read Full Post »

SQL Server upgrade advisor is one of the important tools and it plays a pivotal role when you need to assess the upgrade in your SQL Server. However, I got an error message when installing SQL Server 2012 upgrade advisor. Given below is the screen image of the error message.

SQL Upgrade Advisor Setup.1.1

Let me explain the error and its solution in detail.

Error Message:
Setup is missing prerequisites:
-Microsoft SQL Server 2012 Transact-SQL ScriptDom, which is not installed by
Upgrade Advisor Setup. To continue, install SQL Server 2012 Transact-SQL
ScriptDom from below hyperlink and then run the Upgrdae Advisor Setup operation
again :

Go to http://go.microsoft.com/fwlink/?linkID=216742

Resolution:
It seems that it is not only the error message but also the solution as well. Let me resolve it step by step.

Step 1 :
First of all, you need to go to the URL as mentioned above in order to fix this bug.

Step 2 :
Once you browse the above link, it will take you to a page where you need to download the instruction to proceed further. However, you can select the Install instruction link shown below to get the list of all SQL Server tools.

SQL Upgrade Advisor Setup.1.2

Step 3 :
Once you browse install instruction, you need to scroll down till you will find Microsoft® SQL Server® 2012 Transact-SQL ScriptDom. It is available for both (x86 & x64) system types as shown below. However make sure the system type of your server before downloading it. Its installation is self explanatory. Once you install it, you can easily install SQL Server 2012 upgrade advisor.

SQL Upgrade Advisor Setup.1.3

Read Full Post »

Change Data Capture (CDC) is one of the best features shipped with SQL Server 2008. We usually use CDC to record the change of the tables using DML operations for audit purpose. Today, I configured CDC for one of my clients. In order to configure the CDC, first of all, you need to enable it. However, once I tried enabling it but it gave me an error.

Let me explain the error and its solution in detail.

Message Number: 22830

Severity : 16

Error Message: Could not update the metadata that indicates database %s is enabled for Change Data Capture. The failure occurred when executing the command ‘%s’. The error returned was %d: ‘%s’. Use the action and error to determine the cause of the failure and resubmit the request.

Error Generation:
Let me enable the CDC to generate the error.

USE AdventureWorks2012
GO
EXEC sys.sp_cdc_enable_db
GO
--OUTPUT

Msg 22830, Level 16, State 1, Procedure sp_cdc_enable_db_internal, Line 193
Could not update the metadata that indicates database AdventureWorks2012 is enabled for Change Data Capture. The failure occurred when executing the command ‘SetCDCTracked(Value = 1)’. The error returned was 15517: ‘Cannot execute as the database principal because the principal “dbo” does not exist, this type of principal cannot be impersonated, or you do not have permission.’. Use the action and error to determine the cause of the failure and resubmit the request.

Ooopps…… I am unable to enable the CDC. What is the solution ? Let me explain the solution.

Resolution:
If you look at the error message, you will find two error numbers 22830 & 15517. In fact the actual error is 15517 and the reason behind this is, you do not have a valid log in for the database owner of the selected database. The solution I found is from Microsoft support site. Given below is the script.

USE AdventureWorks2012 -- Change the database name
GO
sp_changedbowner 'sa' --Change the valid login name
GO

Once you execute the above statement, you can easily enable the CDC and enjoy the benefit of CDC.

Conclusion:
To conclude, whenever you come across this error, you should change the database owner of the selected database to a valid SQL Server log in.

Read Full Post »

Filetable is one of the new features shipped with SQL Server 2012. I have discussed its core functionality earlier in my articles. Today, I was trying to open one of the filetables using Explorer File Table Directory and it gave me given below error message.

file location cannot be opened.1.1

Let me explain the error and its solution in detail.

Error Message: The File location cannot be opened. Either access is not enabled or you do not have permissions for the same.

Solution:
If you look at the error description, it seems that either your access to this filetable is not enabled by the administrator or you do not have the permission to access this filetable. And I am a bit surprised because I logged in as an administrator, what next then ?

Let me explain the solution step by step.

Step 1 :
Click on the Start >>All Programs >>Microsoft SQL Server 2012 >>Configuration Tools >> SQL Server Configuration Manager, as shown in the image below.

filestream_disabled.1.1

Step 2 :
Once you click on SQL Server configuration manager, it will open SQL Server configuration manager options. It has two panes. Now you need to select SQL Server Services from the left hand pane and select the SQL Server Instance, right click on it and select Properties as shown in the image below.

filestream_disabled.1.2

Step 3 :
Once you select the Properties, it will open SQL Server Properties dialogue box. Now you need to find FILESTREAM Tab and select it.
Once you select it, you will find given below options as shown in the image.

    1. Enable FILESTREAM for Transact-SQL access.
    2. Enable FILESTREAM for file I/O access.
    3. Allow remote clients to have streaming access to FILESTREAM data.

file location cannot be opened.1.2

As you can see, the 2nd option (Enable FILESTREAM for file I/O access) has NOT been ENABLED and due to this reason, you cannot access filtable from SQL Server Management Studio (SSMS). Just enable this option and click Apply as shown in the picture below.

file location cannot be opened.1.3

Step 4 :
Once you are done with SQL Server Configuration Manager, open SQL Server Management Studio and go to the same filetable and open it using Explorer FileTable Directory. This time it will not give you this error.

file location cannot be opened.1.4

Read Full Post »

Last weekend, my support engineer and I were at a client site to upgrade SQL Server 2005 to SQL Server 2012. Before proceeding with any activity, we tried to take a backup and got the given below error that I received it later by my support engineers as shown below.

error

Let me explain the error and its solution in details.

Message Number: 3023

Severity : 16

Error Message: Backup and file manipulation operations (such as ALTER DATABASE ADD FILE) on a database must be serialized. Reissue the statement after the current backup or file manipulation operation is completed.

Resolution:
If you look at the error description, it seems that there is a transaction going on in the background, and due to this reason SQL Server is not allowing us to take a backup or may be the database is corrupt. So we started doing our basic testing and it seems everything is fine. Then why SQL Server is not allowing us to take a backup ?

So, I thought of executing the given below query to check whether any backup or restore operation is in progress and I found that a scheduled backup was already in progress. Ooopss……….. So we waited for a while and took the backup again.

erromessage3023.1.1

Conclusion:
Whenever you come across this error, you should check what the processes are in progress in SQL Server. It will give you a hint, why you are unable to take backup. In my case, a scheduled backup was in progress at the same time when I tried to take the backup.

Read Full Post »

Recently, I was busy with one of the major data recoveries and unfortunately there was no backup. First of all, I asked for the SQL Server log data to recover their deleted data. After a while, I got it but the major problem was that the varbinary data was available in ntext data type column in the dummy table. As you guys know, SQL Server maintains its log data in varbinary format. I tried to convert it into varbinary and received the given below error message. After a while, I solved it. Given below is the solution.

Message Number : 529

Severity : 16

Error Message : Explicit conversion from data type %ls to %ls is not allowed.

Error Generation:
Let me create a sample table to demonstrate this error.

USE tempdb
GO
--DROP TABLE tbl_sample
--GO
--Create Table
CREATE TABLE tbl_sample
(
 [Col_ID] INT,
 [Col_Ntext] NTEXT
)
GO

--Insert few records
INSERT INTO tbl_sample VALUES (1,'0x7261726573716C2E636F6D')
INSERT INTO tbl_sample VALUES (2,'0x496D72616E')
INSERT INTO tbl_sample VALUES (3,'0x53514C20536572766572')
GO

--Convert the ntext data type column to varbinary
SELECT [Col_ID],CONVERT(VARBINARY(MAX),[Col_Ntext]) AS [Col_Ntext]
FROM tbl_sample
GO

--OUTPUT

Msg 529, Level 16, State 2, Line 1
Explicit conversion from data type ntext to varbinary(max) is not allowed.

Ooopps…… I am unable to convert ntext to varbinary data type. What is the solution ? Let me explain the solution step by step.

Step 1 :
First of all, add one varbinary data type column in the table as shown below.

USE tempdb
GO

ALTER TABLE tbl_sample ADD [Col_Varbinary] VARBINARY(MAX)
GO

Step 2 :
Create an update statement using select statement as shown below.

USE tempdb
GO

SELECT 'UPDATE tbl_sample SET [Col_Varbinary]='
+ CONVERT(VARCHAR(MAX),[Col_Ntext]) +' WHERE [Col_ID] ='
+ CONVERT(VARCHAR(MAX),[Col_ID]) AS [Query]
FROM tbl_sample
GO
--OUTPUT

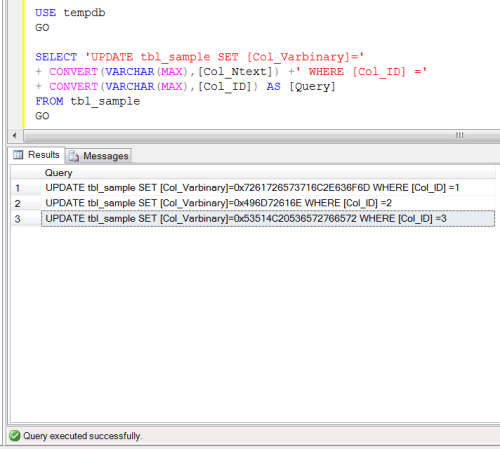

ntext to varbinary.1.1

Step 3 :
Once you execute the Step 2 query, you will get the updated statement as a result set as shown above. Just execute that updated statement as shown below.

USE tempdb
GO

UPDATE tbl_sample SET [Col_Varbinary]=0x7261726573716C2E636F6D
WHERE [Col_ID] =1

UPDATE tbl_sample SET [Col_Varbinary]=0x496D72616E
WHERE [Col_ID] =2

UPDATE tbl_sample SET [Col_Varbinary]=0x53514C20536572766572
WHERE [Col_ID] =3

GO

Step 4 :
Delete the ntext column of the table (if not required) as shown below. This step is not mandatory.

USE tempdb
GO

ALTER TABLE tbl_sample DROP COLUMN [Col_Ntext]
GO

Step 5 :
Now, browse the table and you can view that you successfully converted ntext data type to varbinary data type.

USE tempdb
GO

SELECT
 [Col_ID]
,[Col_Varbinary]
FROM tbl_sample

GO

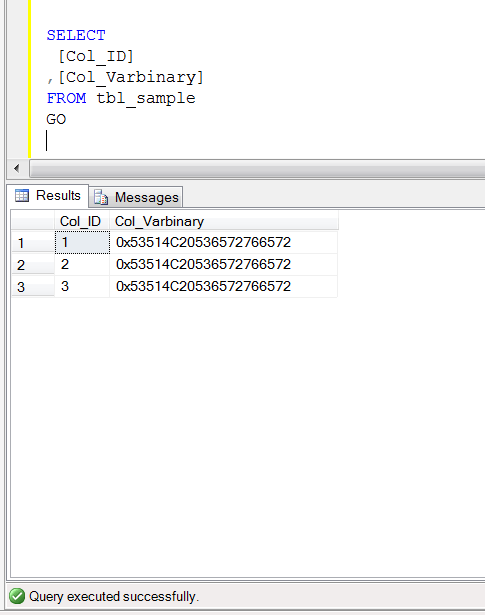

ntext to varbinary.1.2

Read Full Post »

Today, I installed a SQL Server instance in one of my labs, and tried to run a query using OPENROWSET and got an error. Given below are the details of the error.

Message Number: 15281

Severity : 16

Error Message: SQL Server blocked access to %S_MSG ‘%ls’ of component ‘%.*ls’ because this component is turned off as part of the security configuration for this server. A system administrator can enable the use of ‘%.*ls’ by using sp_configure. For more information about enabling ‘%.*ls’, see “Surface Area Configuration” in SQL Server Books Online.

Error Generation:

Given below is the script that I tried to execute but it resulted with the following error:

USE AdventureWorks2012
GO
SELECT *
FROM OPENROWSET('SQLNCLI', 'Server=(local);uid=test;pwd=test',
'EXEC AdventureWorks2012.[dbo].[uspGetManagerEmployees] 16');

Msg 15281, Level 16, State 1, Line 1
SQL Server blocked access to STATEMENT ‘OpenRowset/OpenDatasource’ of component ‘Ad Hoc Distributed Queries’ because this component is turned off as part of the security configuration for this server. A system administrator can enable the use of ‘Ad Hoc Distributed Queries’ by using sp_configure. For more information about enabling ‘Ad Hoc Distributed Queries’, search for ‘Ad Hoc Distributed Queries’ in SQL Server Books Online.

Ooopps…… I am unable to execute the OPENROWSET query.

Resolution:
Basically, ‘Ad hoc Distributed Queries’ are disabled by default in SQL Server due to security configuration and you cannot use either OPENROWSET or OPENDATASOURCE and if you cannot execute these two rowset functions, then you cannot access any remote data sources. So how to fix this issue?
Given below is the script to enable ‘Ad hoc Distributed Queries’.

USE master
GO
sp_configure 'show advanced options', 1;
RECONFIGURE;
GO
sp_configure 'Ad Hoc Distributed Queries', 1;
RECONFIGURE;
GO
--OUTPUT

Configuration option ‘show advanced options’ changed from 0 to 1. Run the RECONFIGURE statement to install.
Configuration option ‘Ad hoc Distributed Queries’ changed from 0 to 1. Run the RECONFIGURE statement to install.

As you can see above, the ‘Ad hoc Distributed Queries’ setting changed from 0 to 1. Now you can easily execute any ‘Ad hoc Query’

Note : By default, this option is set to 0 and you need to change it to 1 to activate this feature.

Read Full Post »

We usually use temporary table to keep temporary data in the stored procedure, it can be local, global or a table variable. Recently, I was working on the stored procedures’ metadata in a client database using sp_describe_first_result_set (a new system stored procedure shipped with SQL Server 2012). Ooopps….. there’s an error, let me explain the error in detail. This error message is available in SQL Server 2012 and above.

Message Number: 11526

Severity : 16

Error Message: The metadata could not be determined because statement ‘%.*ls’ in procedure ‘%.*ls’ uses a temp table.

Error Generation:
Let me create a stored procedure to demonstrate this error.

USE tempdb
GO
--DROP PROCEDURE [dbo].[usp_sample]
--GO
CREATE PROCEDURE [dbo].[usp_sample]
AS
BEGIN
CREATE TABLE #temp_Sample
(
[ID] INT,
[NAME] VARCHAR(32)
)
INSERT INTO #temp_Sample VALUES (1,'Bob')

SELECT * FROM #temp_Sample
END
GO

EXEC [dbo].[usp_sample]
GO
--OUTPUT

error_message_11526.1.1

You can see that I have created a stored procedure and executed it as well and got the result set. Now I would like to view the metadata of the above stored procedure. Given below is the script to view the metadata using sp_describe_first_result_set

USE tempdb
GO
Sp_describe_first_result_set @tsql =N'usp_sample'
GO
--OUTPUT

Msg 11526, Level 16, State 1, Procedure sp_describe_first_result_set, Line 1
The metadata could not be determined because statement ‘INSERT INTO #temp_Sample VALUES (1,’Bob’)’ in procedure ‘usp_sample’ uses a temp table.

Ooopps…… I am unable to execute it.

Resolution:
The reason behind this error is, you used a local temporary table in the stored procedure and you cannot view the metadata using sp_describe_first_result_set. So what to do ? Very simple guys, just convert local temporary table to table variable and view its metadata.
Given below is the correct script.

USE tempdb
GO
--DROP PROCEDURE [dbo].[usp_sample]
--GO
CREATE PROCEDURE [dbo].[usp_sample]
AS
BEGIN
DECLARE @temp_Sample TABLE
(
[ID] INT,
[NAME] VARCHAR(32)
)
INSERT INTO @temp_Sample VALUES (1,'Bob')

SELECT * FROM @temp_Sample
END
GO

Sp_describe_first_result_set @tsql =N'usp_sample'
GO
--OUTPUT

error_message_11526.1.2

Conclusion :
Remember, whenever you use temporary table in the stored procedure and would like to view the metadata of that stored procedure using sp_describe_first_result_setalways convert local temporary table to table variable.

Read Full Post »

« Newer Posts - Older Posts »
